100–450mm Pedestal Roller Fairlead with Cleat | Verified SWL (254–1766 kN) for Ship Mooring
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Technical Standard: | CB/T 436-2000 | Roller Type: | Type A With CB*58-83 Standard Roller |
|---|---|---|---|
| Roller Diameters: | 100mm~450mm | Roller No.: | Roller No.: Single Roller |
| Roller Weight: | 9.9kg~452kg | Base Weight: | 63.9kg~454.4kg |
| Materials: | Mild C-Mn Steel, Stainless Steel, Casting Steel, NodularCast Iron | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Customized Surface Treatment Available |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc | ||
| Highlight: | Cleat Pedestal Roller Fairlead,CB/T 436 Fairlead,CB/T 436 Pedestal Roller Fairlead |
||
Product Description

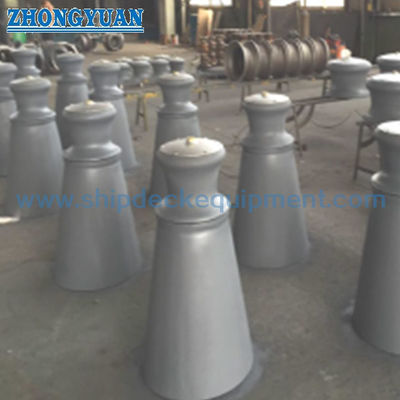

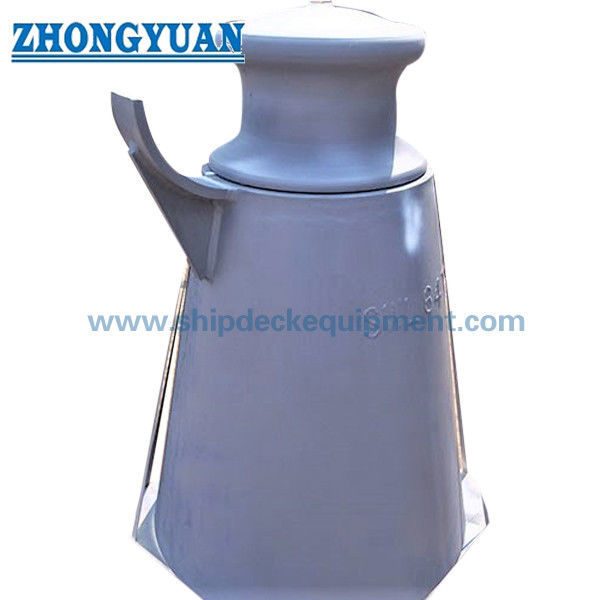

100–450mm Pedestal Roller Fairlead with Cleat | Verified SWL (254–1766 kN) for Ship Mooring
Product Overview
CB/T 436 Type A pedestal roller fairlead with cleat is designed for combined rope guiding and temporary securing in ship mooring systems.
The elevated pedestal structure ensures proper rope lead angle from deck to fairlead, reducing abnormal bending and improving load distribution.
The rotating cast steel roller reduces friction and rope wear, while the integrated cleat enables quick positioning and holding.
Engineered with defined SWL values for selection under real mooring loads, ensuring reliable load transfer and operational safety.
Quick Specifications
- Roller Diameter: 100–450 mm → Defines rope capacity
- Pedestal Height (H): ~1000 mm → Ensures proper lead angle
- SWL: 254–1766 kN → Defines allowable load
- Function: Guiding + Cleating → Combined operation
- Material: Cast steel roller + fabricated pedestal → Strength
- Shaft: High-strength steel → Load transfer
- Lubrication: Grease nipple → Easy maintenance
- Surface: Sa2.5 + primer → Corrosion protection
- Standard: CB/T 436-2000 → Marine compliance
Main Technical Parameters
| Roller Dia. |
Applicable Wire Rope Dia. (Max.) (For reference only) |
Dimensions | Weight kg |
SWL (kN) | ||||||||||||||||
| Fiber Rope Dia. |
Nature Rope Dia. |
SWR (GB /T 8918) Strength 1570 Mpa |
a | D1 | D2 | D3 | D4 | H | H1 | K | K1 | L | s | t | T1 | Roller | Pedestal | |||
| 6X24 | 6X37 | |||||||||||||||||||
| 100 | 28 | 40 | 11. 0 | 11 | 60 | 160 | 48 | 40 | 176 | 12 | 35 | 5 | 5 | 60 | 3 | 8 | 6 | 9.9 | 53. 9 | 254 |
| 150 | 32 | 45 | 16~18 | 14~16 | 240 | 71 | 60 | Z64 | 211 | 40 | 9 | 7 | 75 | 3 | 12 | 8 | 33. 8 | 129. 0 | 412 | |
| 200 | 40 | 55 | 22 | 20 | 310 | 95 | 80 | 338 | 251 | 50 | 10 | 8 | 85 | 3 | 14 | 10 | 68. 0 | 178. 0 | 550 | |
| 250 | 45 | 65 | 24 | 24 | 80 | 380 | 107 | 90 | 408 | 298 | 60 | 10 | 8 | 100 | 4 | 14 | 10 | 114. 0 | 207 | 824 |
| 300 | 50 | 70 | 30 | 28 | 440 | 127 | 110 | 472 | 321 | 60 | 13 | 10 | 100 | 4 | 16 | 14 | 168. 0 | 265 | 1196 | |
| 350 | 55 | 75 | 38 | 34 | 500 | 144 | 125 | 536 | 346 | 65 | 13 | 10 | 100 | 4 | 18 | 14 | 248 | 332. 0 | 1452 | |
| 400 | 65 | 85 | 40~42 | 38~40 | 100 | 560 | 161 | 140 | 600 | 371 | 10 | 14 | 12 | 100 | 5 | 20 | 16 | 355. 0 | 401. 3 | 1766 |
| 450 | 80 | 44 | 42~44 | 620 | 180 | 155 | 660 | 394 | 90 | 14 | 12 | 120 | 5 | 20 | 16 | 452. 0 | 445.4 | 1766 | ||
| Note: Pedestal h= 1000 mm | ||||||||||||||||||||
Selection Guide
Step 1 – Select Roller Diameter → Based on rope size
Step 2 – Confirm Rope Type → Fiber or steel wire rope
Step 3 – Confirm SWL → Must exceed mooring load
Step 4 – Confirm Pedestal Height → Match deck lead angle
Step 5 – Confirm Function → With cleat or guiding only
Step 6 – Confirm Certification → Class requirement
Structure
Cast steel roller | Cleat | Elevated pedestal | Shaft | Lubrication system
Custom Attributes
- Pedestal Height: 500~1500 mm → Correct rope lead
- SWL: 254–1766 kN → Load capacity
- Function: Guide + hold → Efficient operation
- Material: Cast steel → Strength
- Shaft: High strength → Load transfer
- Lubrication: Grease system → Smooth rotation
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Inquiry Guide
Please provide rope diameter, required SWL, pedestal height (if different), installation position, and certification.
How It Works
The elevated pedestal ensures proper rope angle, the roller reduces friction, and the cleat allows temporary securing.
Applications
Ship deck mooring | High lead angle applications | Compact layout
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS; correct lead angle design, reduced rope wear, integrated function.
Drawing & Photos
GA drawing | Product photos
Ordering
MOQ: 1 Unit | Delivery: 45–60 Days | Custom height available
FAQ
Q1: Why pedestal height is important?
A: It ensures proper rope lead angle and reduces side load.
Q2: Can height be customized?
A: Yes, pedestal height can be adjusted to suit deck layout.
Q3: How to select SWL?
A: SWL must exceed expected mooring load.
