Product Details:

Place of Origin: China
Brand Name: Zhongyuan
Certification: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number: Standard and Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: As per quotation
Packaging Details: Pallet or Customized
Delivery Time: As per offer
Payment Terms: TT, L/C, Etc.
Supply Ability: Satisfy clients needs
Get Best Price Contact Now

Detail Information
Technical Standard: CB/T 3143-2013 Nominal Chain Diameter: 50mm To 120mm
Materials: C-Mn Steel, Stainless Steel Surface Treatment: Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available.
Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

Product Description

CB/T 3143 Watertight Dog Type Cable Clench Ship Mooring Equipment



Description:

Dog type cable clench anchor releaser is strictly produced according to the shipbuilding industry standard CB/T 3143-1999. It is applicable to Grade 2 and Grade 3 anchor chains whose diameters are from 50mm to 120mm.Thisdog type anchor releaser has excellent watertight function with anti-rust painting. It also passes the watertight test and obtains qualified certificate.



Main Technical Specification:

1. Technical Standard: CB/T 3143-2013;

2. Nominal Chain Diameter: 50mm to 120mm

3. Applicable to Grade 2 and Grade 3 Anchor Chains;

4. Watertight function test

5. Materials: C-Mn Steel, Stainless Steel,

6. Excellent Flexibility;

7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.

8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

9. Can be Customized



Main Technical Parameter:

Nominal
No.		 Chain Cable
diameter		 L B L1 B1 L2 D H1 H2 n Theoretical
weight
kg
50 50 104 400 244 460 70 60 100 115 10 61
52 52 106 246 72 62 69
54 51 112 435 252 486 74 64 120 72
56 56 116 256 78 67 105 76
58 58 122 463 262 501 80 69 130 14 80
60 60 125 265 83 71 110 82
62 62 129 493 269 524 73 138 85
64 64 132 272 86 75 86
66 66 139 520 281 542 91 78 140 90
68 68 79 92
70 70 146 557 288 570 94 81 115 118 93
73 73 149 97 84 94
76 76 158 593 300 594 102 88 120 155 95
78 78 161 303 105 90 96
81 81 167 610 309 628 107 93 125 165 96
84 84 170 312 110 96 98
87 87 181 690 325 660 115 100 175 100
90 90 183 327 117 103 106
92 92 195 727 339 686 121 105 130 185 113
95 95 198 342 124 108 119
97 97 205 785 353 724 127 110 135 192 121
100 100 208 356 130 113 140 150
102 102 210 358 132 115 186
105 105 221 853 37l 770 137 118 18 214
107 107 225 374 140 120 257
111 111 226 3i6 142 123 145 244
114 114 246 917 398 810 150 127 225 289
117 117 248 152 130 327
120 120 253 403 157 133 150 372

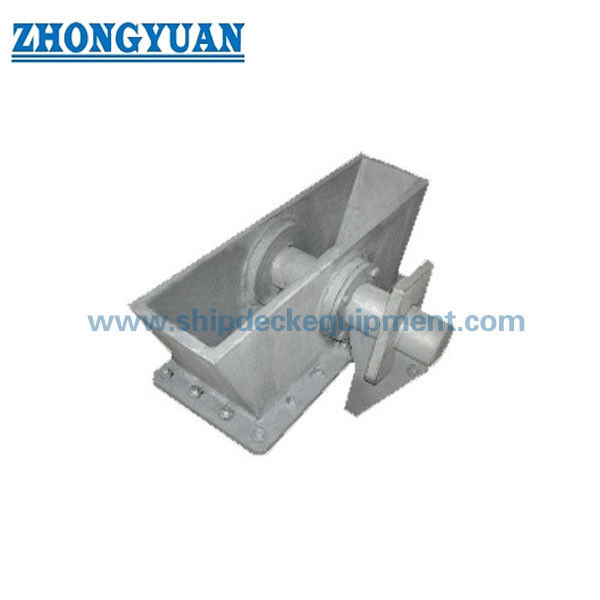

CB/T 3143 Watertight Dog Type Cable Clench Ship Mooring Equipment 0

Drawing of CB/T 3143 Watertight Dog Type Cable Clench Ship Mooring Equipment

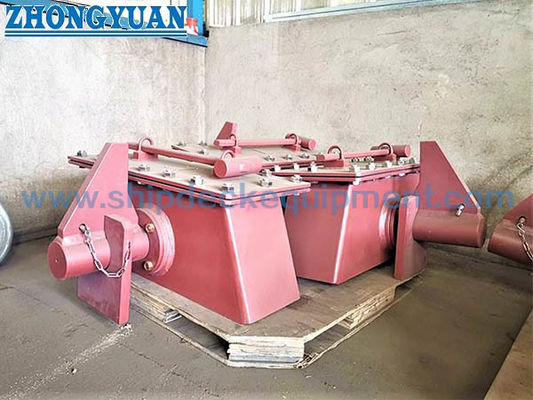

CB/T 3143 Watertight Dog Type Cable Clench Ship Mooring Equipment 1

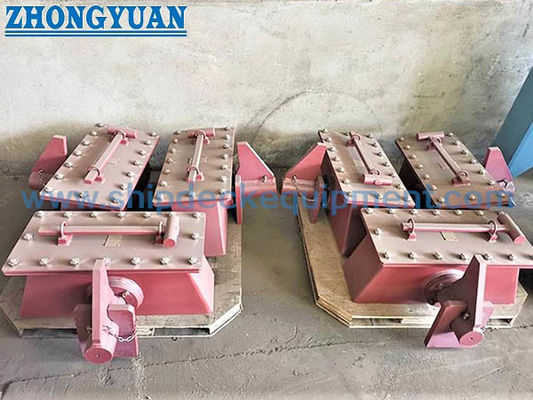

CB/T 3143 Watertight Dog Type Cable Clench Ship Mooring Equipment 2CB/T 3143 Watertight Dog Type Cable Clench Ship Mooring Equipment 3
