50mm Horizontal Anchor Windlass Electric Single Gypsy Single Drum Windlass
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Hydraulic Anchor Windlass |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Function: | Anchor WIndlass | Working Load: | 5KN To 250KN |
|---|---|---|---|
| Warping Head Diameter: | 200-700 Mm | Warping Speed(m/min): | 9-18m/Min |
| Wire Rope Dia: | 11 - 46 (mm) | Material: | Mild Steel, Casting, Stainless Steel |
| Power: | Hydraulic Driven | Control: | Local Or Remote Control |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc | Chain Size: | 12.5mm To 142mm |
| Highlight: | Single Drum Electric Single Gypsy Windlass,Horizontal Anchor Windlass,50mm Electric Single Gypsy Windlass |
||
Product Description

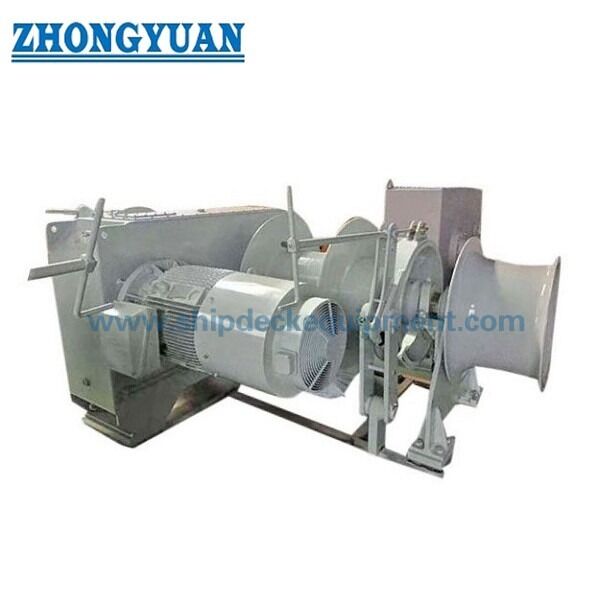

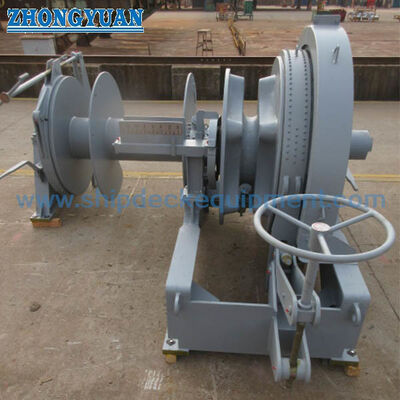

50mm Horizontal Anchor Windlass Electric Single Gypsy Single Drum Windlass
Description
The single gypsy horizontal anchor windlass is engineered to meet class requirements spanning anchor chain sizes from 12.5mm to 142mm. Our 50mm windlass features a single gypsy, single drum and warping end, electric motor, manual brake, jaw clutches, hydraulic units, and an electric switchboard.
Our hydraulic-driven configuration is available with standard or custom control consoles, hydraulic transmission device. Additionally, we provide combination mooring winches and anchor windlasses designed to accommodate all chain sizes for ships.
This comprehensive offering ensures efficient and reliable handling of anchor operations, tailored to meet the diverse needs of maritime applications.
Product Features:
- Precision Gear Design: Ensures low noise and minimal vibration through precise gear machining, providing a quieter and more comfortable operating experience.
- Efficient Transmission: Saves energy, reduces operating costs, and optimizes performance for efficient operation.
- Optimized Motor Power: Utilizes appropriate motor power and high-torque hydraulic motors to enhance overload capacity, ensuring reliable operation under demanding conditions.
- Quick Anchor Chain Release and Retrieval: Facilitates fast and efficient anchor chain release and retrieval, improving operational efficiency.
- Complete Anchor System Solutions: Offers comprehensive solutions with anchor windlasses and chain stoppers tailored to specific vessel requirements.
- 3D Design of Full Anchor Chain System: Ensures smooth passage of anchor chains through chain pipes and chain stoppers, optimizing operational efficiency.
- Simple Installation: Simplifies onboard installation with commonly available 10.9-grade anchor bolts and cost-effective steel adjustment pads.

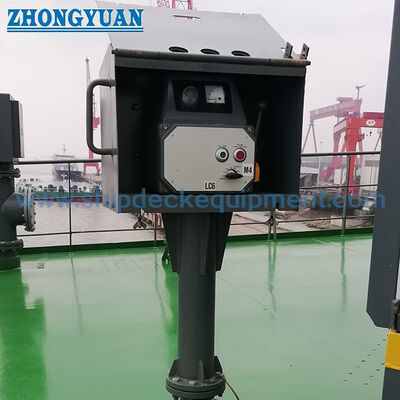

- Customizable Control Console: Provides stainless steel console options with centralized displays for monitoring pressure, current, voltage, and speed, and can be equipped with an anchor chain length counter.
- Remote Control Capability: Supports remote operation from the bridge, enhancing convenience and operational flexibility.
- Enhanced Transmission Strength: Incorporates a common base design to optimize power transmission efficiency.
- Integrated Safety Features: Automatically triggers alarms in case of operational issues to ensure safe and reliable usage.
- These features and advantages enable the anchor windlass system to excel in marine applications, delivering outstanding performance, usability, and safety.
Main Technical Specifications:
- Custom Engineered Units
- Chain Sizes 12.5mm to 142mm
- Designed per Class Rules
- Electric or Hydraulic Operation
- Fully Enclosed Gearbox, or half closed gearing(economical design)
- Fail-safe Brake
- Band Brake
- Jaw Clutch
- Capstan Head
- Control Packages
- Chain Stopper
- Surface Treatment: SA2.5 sand blasting, and marine paint.
- Certificate: BV, DNV, ABS, LR, IRS, RMRS, CCS, etc.
Main Technical Parameters:
| Chain Dia. (mm) |
Working Load (kN) |
AM2 Static Load (kN) |
Working Speed (m/min) |
Warping Load (kN) |
Electric Motor Power (kW) |
Hydraulic Motor Power (kW) |
| 12.5 | 5.9 | 30 | ≥9 | 5 | 3/1.2 | |
| 14/16/17.5 | 8.3/10.9/13.0 | 51/67/80 | ≥9 | 8 | 4.3/1.7 | 5.5 |
| 19/20.5/22 | 15.3/17.9/20.6 | 95/110/126 | ≥9 | 10 | 8.5/3.5 | 7.5 |
| 24/26 | 24.5/28.7 | 149/175 | ≥9 | 20 | 8.5/3.5 | 11 |
| 28/30 | 33.3/38.3 | 202/231 | ≥9 | 30 | 11/11/7.5 | 15 |
| 32/34/36 | 43.5/49.1/55.1 | 261/294/329 | ≥9 | 30 | 16/16/11 | 22 |
| 38/40/42 | 61.4/68.0/75.0 | 365/402/442 | ≥9 | 40 | 22/22/16 | 30 |
| 44/46/48 | 82.3/89.9/97.9 | 483/526/570 | ≥9 | 50 | 30/30/22 | 37 |
| 50/52/54 | 106.3/114.9/123.9 | 617/664/713 | ≥9 | 50 | 30/30/22 | 45 |
| 56/58/60 | 133.3/143.0/153 | 764/816/870 | ≥9 | 60 | 45/45/30 | 55 |
| 62/64 | 163.4/174.1 | 925/982 | ≥9 | 80 | 45/45/30 | 55 |
| 66/68 | 185.1/196.5 | 1040/1098 | ≥9 | 100 | 45/45/30 | 75 |
| 70/73 | 208.3/226.5 | 1160/1254 | ≥9 | 100 | 60/60/45 | 75 |
| 76/78 | 245.5/258.6 | 1350/1416 | ≥9 | 125 | 60/60/45 | 90 |
| 81/84 | 311.7/335.2 | 2171/2321 | ≥9 | 140 | 75/75/36 | 110 |
| 87/90 | 359.5/384.8 | 2473/2629 | ≥9 | 150 | 75/75/36 | 120 |
| 92/95 | 402.0/428.7 | 2735/2898 | ≥9 | 200 | 85/85/64 | 130 |
| 97/100 | 446.9/475.0 | 2995/3162 | ≥9 | 250 | 100/100/50 | 150 |
| 105/107 | 523.7/543.8 | 3612/3750 | ≥9 | 300 | 110/110/55 | 180 |
| 112/114 | 595.8/617.3 | 4109/4228 | ≥9 | 350 | 132/132/66 | 200 |
| 120/122 | 684/707 | 4374/4495.5 | ≥9 | 400 | 250 | |
| 124/127 | 730.4/766.1 | 4626/4819.5 | ≥9 | 450 | 315 | |
| 130/132 | 802.8/827.6 | 5013/5139 | ≥9 | 500 | 315 | |
| 137/142 | 891.5/957.8 | 5472/5809.5 | ≥9 | 550 | 350 |
Drawing of 50mm Horizontal Anchor Windlass Electric Single Gypsy Single Drum Windlass
