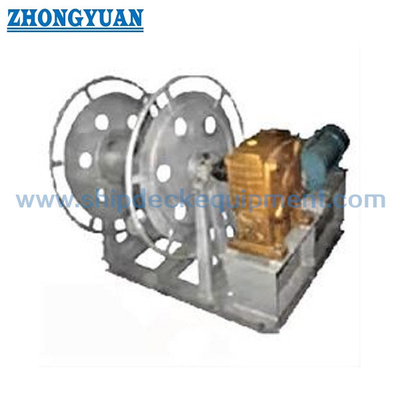

Electric Driven Steel Wire Rope Reel CB*3048 Type A Single Drum
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
| Document: | Motor Rope Reel Electric Mo...83.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Type Model: | A26, A32, | Max. Diameter Of Steel Wire: | 26~32mm |
|---|---|---|---|
| Electric Motor RPM: | 1350/410 Min-1 | Drum Storage Capacity Of Steel Wire Length: | 210-220m |
| Material: | Stainless Steel And Mild Steel | Others: | Sa2.5 Sandblasting And Anti-corrosive Epoxy Painting; Polished |
| Highlight: | CB*3048 Steel Wire Rope Reel |
||
Product Description
Electric Driven Steel Wire Rope Reel CB*3048 Type A Single Drum
Product Description
Electric driven steel wire rope reel CB3048 type A is designed for storage steel wire ropes. It is driven by electric motor cpmnined with gearbox on the common base structure. It is controlled by an electric push button, with two direction rolling and emgerncy stop function. Crew can use handle to operate through the worm gear reducer when there is no electric power. Type A has single drum.
Main Technical Specifications:
- Type Model: A26, A32,
- Max. Diameter of Steel Wire: 26~32mm;
- Electric motor RPM: 1350/410 min-1
- Drum Storage Capacity of Steel Wire Length: 210-220m;
- Material: Stainless Steel and Mild Steel;
- Shaft Lubricated;
- Sa2.5 Sandblasting and Anti-corrosive epoxy Painting; Polished
- Maker or Classification Certificates
- Can Meet Customer’s Special Requirements;
Main Technical Parameters:
| Type Mode |
Steel Wire Max. Dia. (mm) |
Steel Wire Length (m) |
Motor Power (kw) |
Motor RPM Speed (min¯1) |
Drum Rope Speed m/min 1350 Min¯1 |
Drum Rope Speed m/min 410 Min¯1 |
External Dimension LxBXH (mm) |
Weight (kg) |
| A26 | 26 | 220 | 4.3/1.7 | 1350/410 | 56 | 17 | 1330x 1360x 1175 | 545 |
| A32 | 32 | 210 | 60 | 18 | 1430 x 1450x 1330 | 575 |
| Type Mode |
Max.Steel Wire Rope Diameter |
D | D1 | B | B1 | L | L1 | H | H1 | Weight kg |
| A 26 | 26 | 300 | 870 | 1120 | 1360 | 550 | 1330 | 730 | 1175 | 545 |
| A 32 | 32 | 360 | 1050 | 1120 | 1450 | 650 | 1430 | 800 | 1330 | 575 |

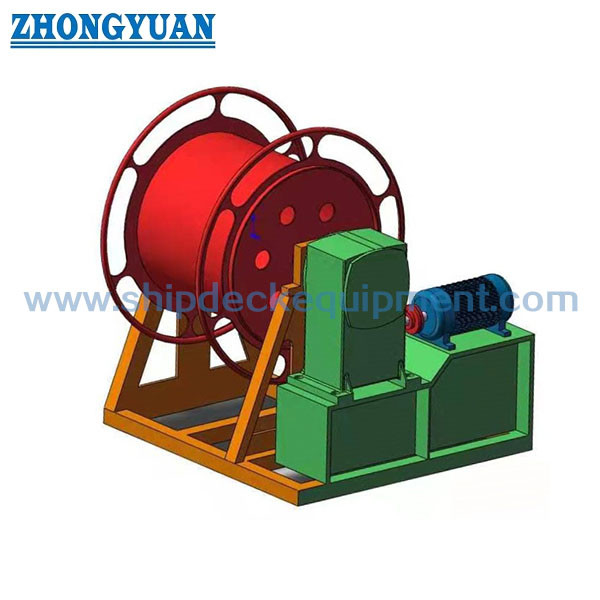

Drawing of CB*3048 Type A Single Drum Electric Driven Steel Wire Rope Reel Ship Deck Equipment
