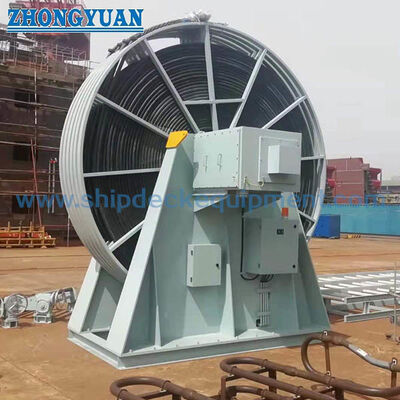

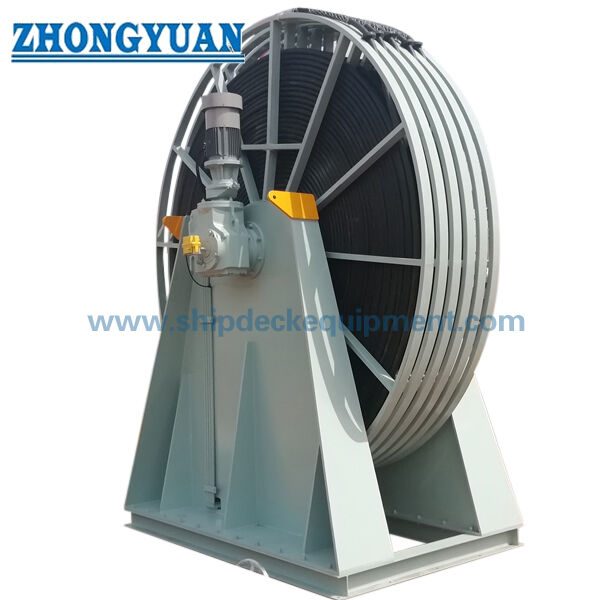

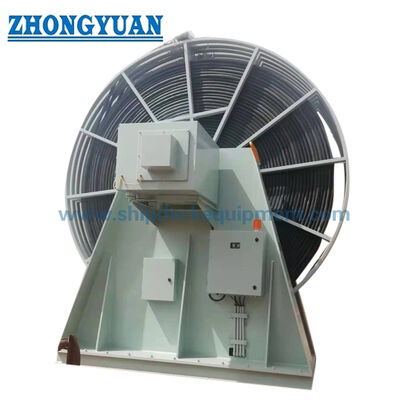

Low Voltage Shore Power Cable Management System Electric Cable Reel
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Electrical Cable Reel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | to be quoted case by case |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | 1,000pc/year |
|
Detail Information |
|||
| Highlight: | Shore Power Cable Reel,Low Voltage Cable Reel,Electric Cable Reel |
||
|---|---|---|---|
Product Description
Electric Cable Reel for Low Voltage Shore Power Cable Management System
Description:
This cable management system is equipped with a 3*185 low-voltage cable and a dedicated shore power plug. The single cable length is 50 meters, and the cable winch design meets the ship's operating conditions. The rated current carrying capacity of the shore power box is 350A. The protection level of the cable management system and shore power box is IP56.
Product Feature:
IEC rules compliance, class rules compliance, national rules compliance
Onboard or on shore installation
IP56 protection
Cable length can be adjustable
Remote and local control
Cable Length Monitoring
Emergency stop and alarm
Automatic Management Function, auto tension, retrieval and release
Standards and specifications
IEC/ISO/IEEE 80005-3-2016< Utility connections in port - Part 3: Low Voltage Shore Connection (LVSC) Systems - General requirements(IEC
60309-5)>
IEC 60309-1
IEC 60309-5
accessories for low voltage shore power connection systems(2017)>
GB／T 36028.2-2018
GB／T 11918.5-2020
systems) >
GD22-2015 Guide for Type Approval testing of electrical and electronic products
Chapter 1, Part Three, Chapter 2,3, Part Four of CCS
Chapter 1, Part Three, Chapter 2, Part Four of CCS
Chapter 1, Part Two, Chapter 3, Part Three of CCS
Chapter 7,8 of CCS
Chapter 5, Part Eleven of
2020 and its Amendments, of MSA, P.R. China
Chapter 2, Part Five of
Chapter 3 of
Chapter 2, Part Eight of
Amendments of MSA, P.R. China
Environment Conditions
1) Installation Location:Onboard installation.
2) Ambient Temperature:-25℃～+45℃
3) Relative Humidity:≤98%
4) Altitude:≤1000m
Summary
This Cable Management System is mainly composed of frame, cable reel, motor and reducer assembly elec. slip ring assembly, elec. control system, hysteresis coupling, shore power cable and shore power plug and other components.
| S/N | Name | Quantity |
| 1 | Frame assembly | 1 |
| 2 | Cable reel assembly | |
| 3 | Motor and reducer assembly | 1 |
| 4 | Elec. slip ring assembly | 1 |
| 5 | Elec. control system | 1 |
| 6 | Hysteresis coupling | 1 |
| 7 | Shore power cable 3*185+1*95+4*2.5 | 50m*1 |
| 8 | Shore power plug | 1 |
The cable winch neatly collects a 50-meter cable on the cable reel, which is driven by motor. The cable with a plug can be reversed through the lower part of the reel.
Main Functions
Collect the cable
Manual operation control box on the collect cable button, winch collect the cable.
Using the remote control can also collect the cable.
Manual operation control box on the release cable button, winch releases the cable.
Using the remote control can also release the cable.
Cable Length Monitoring
When the cable is fully wound, the winding action is stopped and the display shows.
When there last 4 turns, the display and audio-visual alarm respond;
When there last 1 turn, the shore-side safety circuit is disconnected from the shore power supply, and the display and audio-visual alarm respond.
Emergency stop
Pressing the emergency stop button cuts off the shore-side safety circuit of the shore power supply and the power supply of the winch control system.
Cable Automatic Management Function
During shore power use, the cable reel can detect the change in cable tension in real time based on the position and tidal changes of the vessel through the tension and control system. The cable reel can automatically release or store the shore-to-ship connection cable according to the change in cable tension value to prevent the cable from being too tight or too loose.
Automatic cable release: When the vessel discharges cargo or the tide rises, causing the vessel to rise, the cable tension increases, and when the monitored cable tension exceeds the preset value, the control system automatically controls the motor to release a certain length of cable. When the monitored cable tension value returns to normal, the control system gives the signal for the motor to stop releasing cable, and the motor stops rotating and simultaneously engages the brake.
Automatic cable retrieval: When the vessel loads cargo or the tide falls, causing the vessel to descend, the cable tension decreases. When the monitored cable tension is less than the pre-set value, the control system automatically controls the motor to retrieve a certain length of cable. When the monitored cable tension value returns to normal, the control system gives the signal for the motor to stop retrieving cable, and the motor stops rotating and simultaneously engages the brake.
Technical parameters of main components
Inverter motor
|
Rated Power |
Rated Voltage |
Rated frequency |
Rated Current |
Rated speed |
Class of protection |
Insulation grade |
| 2.2KW | 380V/440V | 50Hz/60Hz | 5.1A/4.5A | 1405r/min to 1730r/min | IP56 | F |
Reducer
| Ratio | Output max. torque | Max. allowed radial force | Class of protection |
| 146:1 | 2100N.m | 27300N | IP56 |
Hysteresis coupling
| Output torque | Rated speed | Class of protection |
| 5~8Nm | ≤1800r/min | IP56 |
Cable reel assembly
| Type | Reel type | Dimensions | Length |
Reel material and surface treatment |
Class of protection |
| reel | single row, multilayer |
(O.D x I.D x width) : Φ2250xΦ800x600mm |
~50m*1 (diameter ≤ 65mm) |
steel + sprayed Marine anti-corrosion paint. |
IP56 |
Electric slip ring assembly
| Type | Slip ring: | Ring Electric Capacity | Class of protection |
|
Electric slip ring assembly placed in the reel.
|
3 Power ring 1 Earth ring 4 Control ring |
3*350A+1*200A+4*20A | IP56 |
Control box & Junction box
| Material | Class of protection |
| 304 stainless steel | IP56 |
Shore power cable
| Model | Type | Diameter | Length | Quantity | Class of protection |
| 3*185+1*95+4*2.5 | CADEF | ≤65mm | ~50m*1 | 1 | IP56 |
Shore power plug
| Model | Type | Rated Voltage | Rated current | Quantity | Quantity | Class of protection |
| JL17 |
3 Power core, 1 Earth core, 4 Control core |
AC690
|
350A | 1 | 1 | IP56 |
Drawing of Electric Cable Reel for Low Voltage Shore Power Cable Management System
