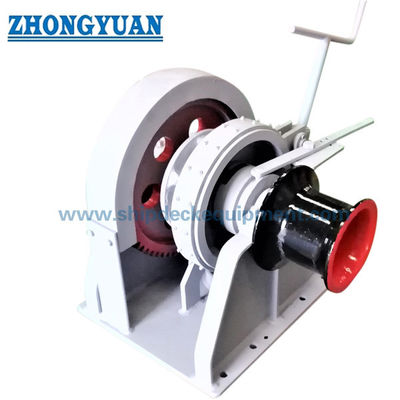

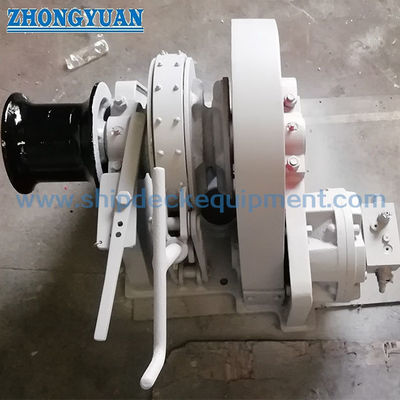

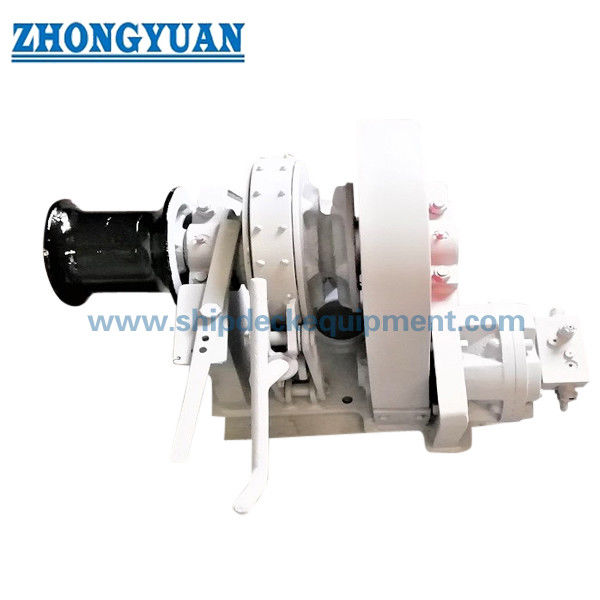

12.5–30mm Hydraulic Anchor Windlass | Single Gypsy Single Warping End for Boat
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Dia: | 12.5mm Electric Hydraulic Windlass | Working Load: | 11.8KN |
|---|---|---|---|
| Overload: | 17.7KN | Support Load: | 50KN |
| Speed(m/min): | ≥10m/Min | Anchor Chain: | Dia. 12.5 (mm), U2 |
| System Pressure: | ~16MPa | System Flow Rate: | ~12L/min |
| Material: | Mild Steel, Casting | Power: | Hydraulic Motor |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, BKI, IRS, RS, Etc | ||
| Highlight: | U2 Hydraulic Windlass,12.5mm Hydraulic Windlass for Boat,12.5mm marine deck equipment |
||
Product Description
12.5–30mm Hydraulic Anchor Windlass | Single Gypsy Single Warping End for Boat
Product Overview
This hydraulic anchor windlass is specifically designed for small vessels such as workboats, barges, and inland ships.
Featuring a compact structure with single gypsy and warping end, it provides reliable anchoring and auxiliary mooring functions.
Designed for compact deck layout and cost-effective anchoring solutions for small vessels.
The system is powered by an electric hydraulic power unit, ensuring stable performance in limited deck space conditions.
Quick Specifications
- Chain Size: 12.5–30 mm → Defines anchor chain compatibility
- Working Load: 6.6–38.3 kN → Determines anchoring capacity
- Brake Load: up to 231 kN → Ensures safe holding performance
- Speed: ≥9 m/min → Defines anchoring efficiency
- Drive Type: Electric Hydraulic → Provides stable torque output
- Configuration: Single Gypsy + Warping End → Anchoring + Mooring function
- Control: Manual Proportional Valve → Enables precise operation
- System Pressure: ~16 MPa → Defines hydraulic performance
- Flow Rate: ~12 L/min → Determines system response
- Installation: Compact Deck Mounting → Suitable for limited space
Main Technical Parameters(for grade 2 chain)
| Chain Dia (mm) | Working Load (kN) | Overload (kN) | Brake Load (kN) | Speed (m/min) |
| 12.5 | 6.6 | 10.0 | 41 | ≥9 |
| 14 | 8.3 | 12.5 | 52 | ≥9 |
| 16 | 10.9 | 16.3 | 67 | ≥9 |
| 17.5 | 13.0 | 19.5 | 80 | ≥9 |
| 19 | 15.3 | 23.0 | 95 | ≥9 |
| 20.5 | 17.9 | 26.8 | 110 | ≥9 |
| 22 | 20.6 | 30.9 | 126 | ≥9 |
| 24 | 24.5 | 36.7 | 149 | ≥9 |
| 26 | 28.7 | 43.1 | 175 | ≥9 |
| 28 | 33.3 | 50.0 | 202 | ≥9 |
| 30 | ~50 | ~75 | ~200 | ≥9 |
Selection Guide
Step 1 – Select Chain Size → Determines compatibility
Step 2 – Confirm Working Load → Based on vessel size
Step 3 – Confirm Brake Load → Ensures safety holding
Step 4 – Select Configuration → Gypsy + warping end
Step 5 – Confirm Control → Manual or proportional
Step 6 – Confirm Hydraulic System → Pressure and flow
Structure & Components
Hydraulic motor | Gearbox | Gypsy wheel | Warping head | Brake | Clutch | HPU | Control valve
Custom Attributes
- Chain Size: 12.5–30 mm → Compatibility
- Working Load: up to 38.3 kN → Capacity
- Brake Load: up to 231 kN → Safety
- Drive Type: Hydraulic → Stable torque
- Control: Proportional valve → Precision
- Design: Compact structure → Saves deck space
- Application: Small vessels → Cost-effective solution
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Custom Configuration & Inquiry Guide
Please provide chain size, vessel type, load requirement, and control preference.
How It Works
Hydraulic motor drives gearbox to rotate gypsy wheel for anchor handling. Warping head assists mooring operations.
Applications
Workboats | Barges | Inland vessels | Small ships
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate; compact design, cost-effective solution, reliable performance, low maintenance.
Drawing & Photos
GA drawing | Installation layout | Product photos
Ordering Information
MOQ:1 | Delivery:60–120 days | Payment:T/T L/C
FAQ
Q: Suitable for small boats? A: Yes, optimized for compact deck and cost efficiency.
Q: Can it do mooring? A: Yes, with warping head.
