Product Overview

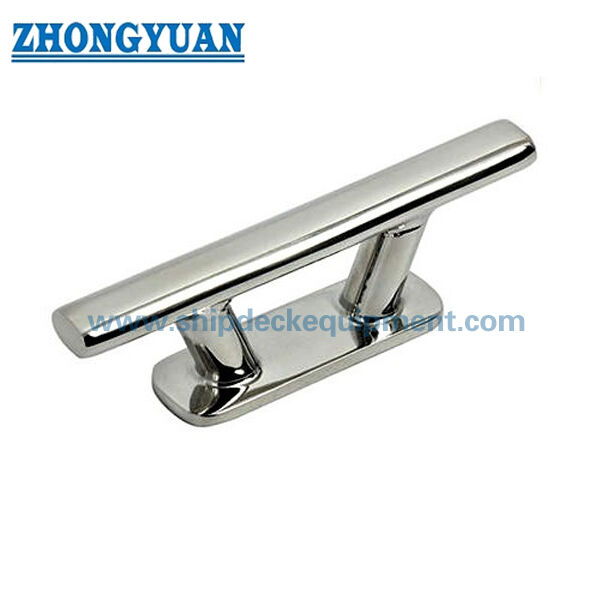

The 316 stainless steel oval tube cleat is a compact deck-mounted mooring cleat for yachts, small boats, marina pontoons, and light-duty deck or dock line securing arrangements. It is used for tying docking and mooring lines with a cleat hitch, while the oval tube shape provides a clean appearance, smooth hand contact, and a practical rope-wrapping form for yacht and small craft outfitting.

This product should be treated as a yacht and boat deck hardware supply item, not as a 50 kN to 2000 kN wharf bollard unless a project-specific load rating, fastening design, backing plate arrangement, and test certificate are confirmed. The supplied series covers S.S.316 oval tube cleats from 150 mm to 380 mm, with mirror polished finish and optional SUS304 / SUS304L / SUS316 / SUS316L material selection according to application and procurement requirement.

Quick Specifications

• Product type: Stainless steel oval tube cleat → compact rope securing point for yacht deck, boat deck, pontoon, and dock mooring lines.
• Material options: SUS304, SUS304L, SUS316, SUS316L → select according to corrosion exposure, appearance requirement, and project budget.
• Main supplied grade: S.S.316 → suitable for marine hardware applications where salt spray and deck exposure are key purchasing concerns.
• Size range: A = 150 / 200 / 250 / 300 / 380 mm → allows matching to yacht size, available deck space, and rope handling requirement.
• Reference D dimension: 90 / 120 / 150 / 161 / 200 mm → useful for deck layout checking, rope wrap clearance, and product photo / drawing matching.
• Workmanship options: Silica sol casting, fabricated, welded, plate, or tube construction → final production method should follow drawing and order scope.
• Surface finish: Mirror polished → improves appearance and reduces rough local contact on handled rope and deck hardware surfaces.
• Load statement: Working load / breaking load not provided → do not treat the cleat as load-rated until test data, fasteners, backing plate, and installation structure are confirmed.

Main Technical Parameters

Selection & Inquiry Guide

• Step 1: Confirm product type as S.S.316 oval tube cleat and select model SF30301-1 to SF30301-5 according to A dimension and deck space.
• Step 2: Confirm application: yacht deck, small boat deck, tender, marina pontoon, dock, or light-duty outfitting position.
• Step 3: Confirm rope size, line material, expected mooring condition, and whether a load rating or destructive test report is required.
• Step 4: Confirm material requirement: SUS304 / SUS304L / SUS316 / SUS316L, and whether material certificate is required with the order.
• Step 5: Confirm surface finish: mirror polished as standard reference, or other polishing / passivation requirement if specified.
• Step 6: Confirm mounting information: bolt hole drawing, fastener size, backing plate, deck thickness, installation direction, and available underside access.
• Step 7: Provide quantity, delivery destination, packing requirement, required delivery time, reference photo, and drawing if available.

Structure

Mirror polished stainless steel body | Oval tube cleat profile | Smooth rope-contact and hand-contact surface | Deck / dock mounting interface | Hidden or through-bolt fixing area to be confirmed | Optional customized shape or size according to drawing

Stainless Steel Hardware & Engineering Advantages

• S.S.316 is commonly selected for yacht and boat deck hardware where salt spray, wet handling, and appearance retention are important purchasing factors.
• The oval tube geometry provides a smooth rope-wrapping shape and clean yacht-style appearance, which is suitable for visible deck hardware locations.
• Mirror polishing improves surface cleanliness and reduces rough contact points, but polishing quality, passivation, and packaging protection should be confirmed for export orders.
• The series covers five practical lengths from 150 mm to 380 mm, helping buyers match small boat, yacht, pontoon, and dock line securing positions.
• Casting, fabricated, welded, plate, or tube production routes can be discussed according to drawing, order quantity, and appearance requirement.
• The cleat should be selected together with fasteners, backing plate, deck laminate / steel plate condition, and access from below the deck.
• For cost-sensitive supply projects, equivalent confirmed models can be purchased through qualified stainless steel marine hardware partners, with sample photo and certificate scope confirmed before shipment.

Custom Attributes

• Product Name: Yacht stainless steel oval tube cleat → used as a boat and yacht deck hardware item for mooring line securing.
• Model Series: SF30301 → five supplied sizes from 150 mm to 380 mm based on A dimension.
• Material: SUS304 / SUS304L / SUS316 / SUS316L → final grade should be confirmed according to marine exposure and project budget.
• Main Material Reference: S.S.316 → suitable for many marine hardware applications where corrosion resistance is more important than lowest cost.
• Workmanship: Silica sol casting / fabricated / welded / plate / tube → select according to actual product drawing and confirmed supplier process.
• Surface Finish: Mirror polished → suitable for yacht deck appearance and clean product presentation.
• Standard / Documentation: CE / ISO-related documents may be available according to supplier and order scope → exact certificate should be confirmed before quotation.
• Load Rating: To be confirmed → working load, breaking strength, and test method are not provided in the current data.
• Supply Mode: Supplied as marine hardware through qualified supply partners when applicable → not described as a self-manufactured load-rated bollard unless confirmed.

How It Works

Mooring or docking line is led to the cleat → Line is wrapped around the oval cleat horns → Cleat hitch secures the rope → Load is transferred through the stainless steel body, fasteners, backing plate, and supporting deck or dock structure → Installation is inspected before service

Applications

Yachts | Leisure boats | Small workboats | Tender decks | Pontoon docks | Marina berths | Boat deck outfitting | Docking and light mooring line securing | Replacement deck hardware projects

Certifications & Advantages

CE / ISO-related documentation, supplier declaration, material certificate, inspection record, and maker certificate can be discussed according to order scope. For classed ship projects, classification society documentation should be confirmed before quotation and is not supplied by default.

Certification options to be confirmed: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate.

Drawing & Photos

FAQ

Q1: Is this product the same as a 50 kN to 2000 kN ship or wharf bollard?

A1: No. The supplied technical table is for a stainless steel oval tube cleat used on yachts, boats, pontoons, and docks. It should not be described as a heavy mooring bollard unless load rating, structure, fastening design, and test certificate are provided.

Q2: Why is S.S.316 commonly selected for yacht cleats?

A2: S.S.316 is commonly preferred for visible marine deck hardware because it provides better chloride corrosion resistance than standard 304 stainless steel. Final grade selection should still consider budget, exposure level, polishing quality, and maintenance conditions.

Q3: What information is needed before quotation?

A3: Please confirm model, A dimension, material grade, quantity, finish, mounting hole drawing, fastener and backing plate requirement, certificate requirement, delivery destination, and whether load testing or sample confirmation is required.
