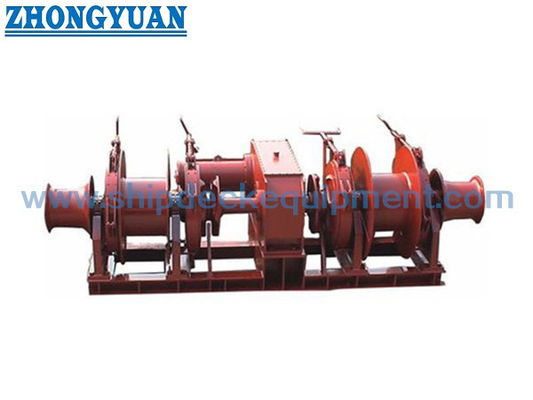

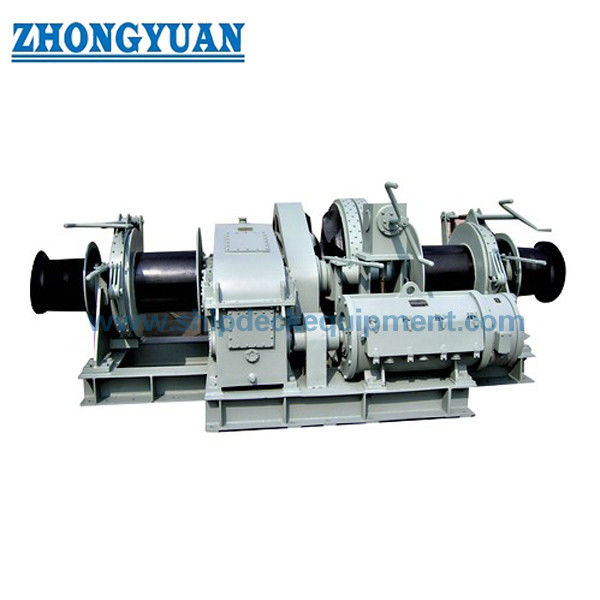

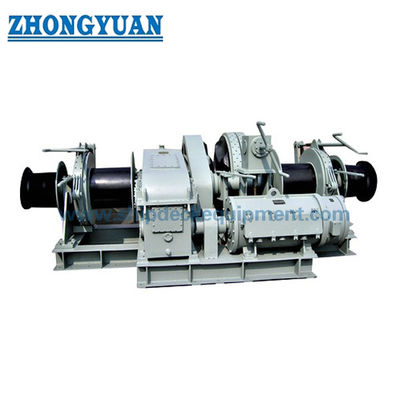

12.5–114mm Electric Anchor Windlass with Double Drum & Warping Head | Marine Anchor Handling System
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Anchor Chain Diameter: | Φ32mm | Rated Pull Load: | 43.5kN |
|---|---|---|---|
| Working Speed: | 9m/min | Mooring Load: | 30kN |
| Support Load: | 261kN | Motor Power: | 16/16/11KW |
| Speed: | 9m/min | Gypsy Number: | Double |
| Power Supply: | AC Single-phase 110V, 220V, 240V; AC Three-phase 220V, 380V, 440V, 660V | ||
| Highlight: | steel 9m/min electric anchor windlass,9m/min electric anchor windlass,CCS electric windlass for boats |
||
Product Description
12.5–114mm Electric Anchor Windlass with Double Drum & Warping Head | Marine Anchor Handling System
Product Overview
The electric anchor windlass system is primarily designed for anchor chain handling operations on marine vessels.
It integrates a gypsy wheel for anchor chain control and a drum/warping head for auxiliary mooring rope operations.
The system ensures safe anchoring through controlled lifting, lowering, and braking of anchor chains.
This system is primarily designed for anchor chain handling, with auxiliary mooring capability via drum and warping head.
Quick Specifications
• Anchor Chain Size: 12.5–114 mm
• Anchor Chain Pull: 5.9–617 kN
• Brake Holding Load: 30–4228 kN
• Chain Speed: 9 m/min
• Warping Head Pull: 5–350 kN
• Motor Power: 3–200 kW
• Drive Type: Electric
• Configuration: Single gypsy + double drum + warping head
• Chain Grade: U2 / U3
• Control: Local / Remote
Main Technical Parameters(smiplified)
| Chain (mm) | Chain Pull (kN) | Brake Load (kN) | Speed (m/min) | Warping Pull (kN) | Motor Power (kW) |
| 12.5 | 5.9 | 30 | 9 | 5 | 3 |
| 19 | 15.3 | 95 | 9 | 10 | 7.5 |
| 26 | 28.7 | 175 | 9 | 20 | 11 |
| 32 | 43.5 | 261 | 9 | 30 | 22 |
| 40 | 68.0 | 402 | 9 | 40 | 30 |
| 50 | 106.3 | 617 | 9 | 50 | 45 |
| 60 | 153.0 | 870 | 9 | 80 | 45 |
| 70 | 208.3 | 1160 | 9 | 100 | 75 |
| 90 | 384.8 | 2629 | 9 | 150 | 120 |
| 114 | 617.3 | 4228 | 9 | 350 | 200 |
Selection Guide
Step 1 – Select Chain Size | Step 2 – Match Anchor Chain Pull | Step 3 – Confirm Brake Holding Load | Step 4 – Select Warping Pull | Step 5 – Confirm Drive Type | Step 6 – Select Configuration | Step 7 – Installation Layout
Structure & Components
Structure & Components: Electric motor | Gearbox | Gypsy wheel (chain handling) | Double drum (rope handling) | Warping head | Brake system | Clutch system | Chain stopper | Control panel | Base frame
Custom Attributes
Chain Size | Chain Pull | Brake Load | Warping Pull | Drive Type | Configuration | Control
Custom Configuration & Inquiry Guide
Chain Size | Chain Grade | Pull | Brake Load | Warping Requirement | Control System | Installation Requirement
How It Works
The electric motor drives the gearbox to rotate the gypsy wheel for anchor chain handling.
The anchor is raised or lowered via the gypsy, while braking and clutch systems ensure safe operation.
The drum and warping head provide auxiliary rope handling functions.
Applications
Anchor handling operations | Ship anchoring systems | Commercial vessels | Offshore vessels | Naval and patrol ships
Certifications & Advantages
Certifications: CCS | ABS | DNV | BV | LR | NK | RINA
Advantages: Dedicated chain handling design | High braking capacity | Integrated mooring support | Space-saving layout | Reliable marine performance
Drawing & Photos
• General arrangement drawing
• Gypsy and chain system drawing
• Installation layout
• Product photos
Ordering Information
• MOQ: 1 Unit
• Delivery: Project based
• Customization: Available
FAQ
Q1: What is the main function?
A: Anchor chain handling using gypsy system.
Q2: Can it handle rope?
A: Yes, via drum and warping head.
Q3: What chain grade is supported?
A: U2 and U3 standard chains.
