ISO 17357 Net Type Yokohama Floating Pneumatic Marine Rubber Fender
Product Details:
Place of Origin: | China |
Brand Name: | Zhongyuan |
Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Model Number: | Standard and Customized |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | As per quotation |
Packaging Details: | Pallet or Customized |
Delivery Time: | As per offer |
Payment Terms: | TT, L/C, Etc. |
Supply Ability: | Satisfy clients needs |
Detail Information |
|||
Technical Standard: | ISO 17357:2014, | Fender Size:: | Dia.1000 X L 3000m To Dia. 4500 X L 30000m (low Pressure), Dia.500 X L 1000m To Dia.4500 X L 12000m (high Pressure) |
---|---|---|---|
High Pressure Fender Type:: | Net-type; Net-type And One End With No Flange Opening And No Metal Parts; Sling-type; | Low Pressure Fender Type:: | Clamped End Type; Moulded End Type. |
Safety:: | Safety Valve Is Equipped As Standard Or As Inquiry; | Initial Internal Pressure:: | 7 KPa For Low Pressure Fender, 50 KPa & 80 KPa For High Pressure Fender; |
Test And Inspection:: | Material Test Of Rubber, Dimensional Inspection, Air-leakage Test, Hydrostatic-pressure Test | Certificate:: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS,Prototype Fender Test Certificate, Commercial Fender Inspection And Test Certificate |
Installation:: | Welded On The Chain Locker | Fender Colour:: | If Not Specified, The Colour Shall Be Black, As Buyer’s Inquiry |
Identification System:: | As ISO 17357 Standard And Buyer’s Inquiry; | ||
Highlight: | yokohama pneumatic fender,net type marine rubber fender,floating marine rubber fender |
Product Description

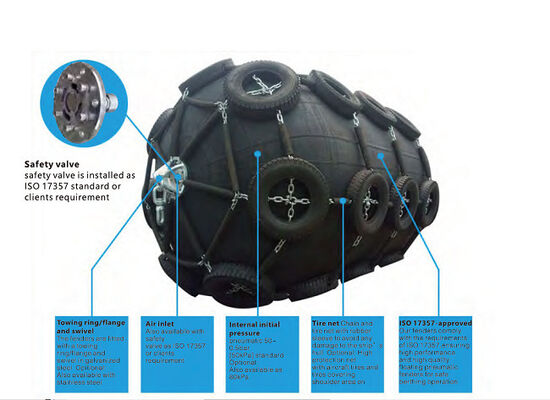

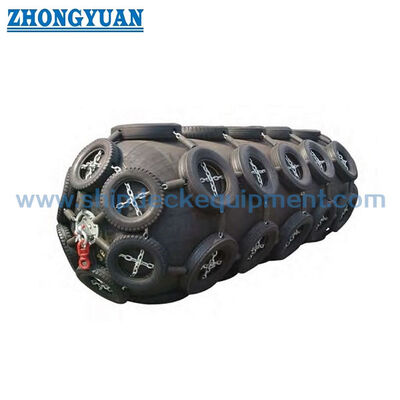

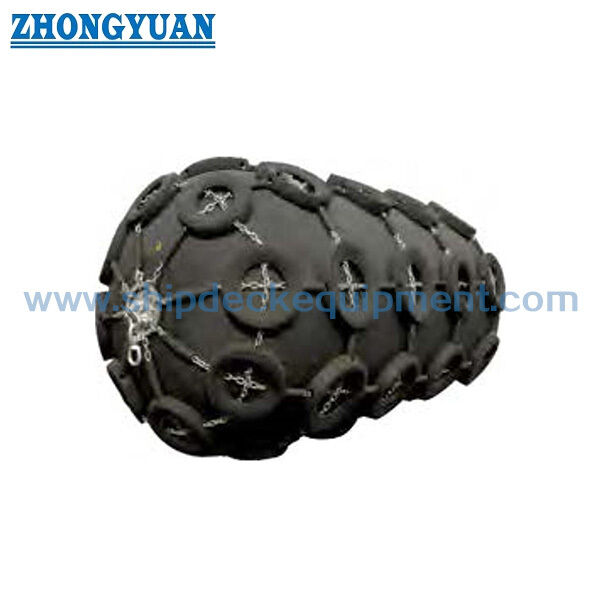

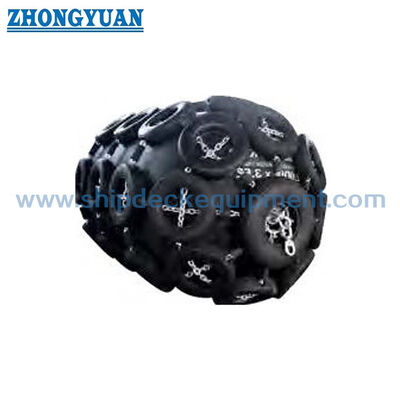

ISO 17357 Net Type Yokohama Floating Pneumatic Marine Rubber Fender
Description:
ISO 17357 net type Yokohama floating pneumatic marine rubber fenders can play an important role in a ships safe berthing operation. As leading anti- collision anti collision equipment, pneumatic rubber fend has a long and successful history of protecting vessels in mooring operations. They are ideal for permanent and semi-permanent port applications, as well as for offshore ship- to- ship transferring. Our fenders are fast and easy to install, keeping suitable clearance between the hull and the jetty or vessels. Its aim is to minimize potential damage during berthing operations. The se fenders play a critical role in the safe operation of ship berthing.
Net type pneumatic fenders are fitted with a chain-tyre net. The net consists of used tyre connected by a network of horizontal and vertical chains. which adds further protection to the fender body
Main Technical Specifications:
- Standard: ISO 17357:2014,
- Fender size: Dia.1000 x L 3000m to Dia. 4500 x L 30000m (low pressure), Dia.500 x L 1000m to Dia.4500 x L 12000m (high pressure)
- High Pressure Fender Type: Net-type; Net-type and one end with no flange opening and no metal parts; Sling-type;
- Low Pressure Fender Type: Clamped end type; Moulded end type.
- Safety: Safety valve is equipped as standard or as inquiry;
- Initial internal pressure: 7 kPa for low pressure fender, 50 kPa & 80 kPa for high pressure fender;
- Test and inspection: Material test of rubber, Dimensional inspection, Air-leakage test, Hydrostatic-pressure test
- Fender colour: If not specified, the colour shall be black, As buyer’s inquiry
- Identification system: As ISO 17357 standard and buyer’s inquiry;
- Certificate: Classification society, Prototype fender test certificate, Commercial fender inspection and test certificate
- Can be customized;
Main Technical Parameters:
Pneumatic 50 fender size and performance requirements | ||||
Nominal size diameter x length mm |
Initial Internal pressure kPa |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection (R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflect10n 6 0 土 5 % kj |
Tolerance 土 10 % kN |
Reference value kPa |
||
500 X 1 000 | 50 | 6 | 64 | 132 |
600 X 1 000 | 50 | 8 | 74 | 126 |
700 X 1 500 | 50 | 17 | 137 | 135 |
1 000 X 1 500 | 50 | 32 | 182 | 122 |
1 000 X 2 000 | 50 | 45 | 257 | 132 |
1200 X 2 000 | 50 | 63 | 297 | 126 |
1 350 X 2 500 | 50 | 102 | 427 | 130 |
1 500 X 3 000 | so | 153 | 579 | 132 |
1 700 X 3 000 | 50 | 191 | 639 | 128 |
2 000 X 3 500 | 50 | 308 | 875 | 128 |
2 500 X 4 000 | 50 | 663 | 1381 | 137 |
2 500 X 5 500 | 50 | 943 | 2 019 | 148 |
3 300 X 4 500 | 50 | 1175 | 1884 | 130 |
3 300 X 6 500 | 50 | 1814 | 3 015 | 146 |
3 300 X 10 600 | 50 | 3 067 | 5 257 | 158 |
4 500 X 9 000 | 50 | 4 752 | 5 747 | 146 |
4 500 X 12 000 | 50 | 6 473 | 7 984 | 154 |
Pneumatic 80 fender size and performance requirements | ||||
500 X 1 000 | 80 | 8 | 85 | 174 |
600 X 1 000 | 80 | 11 | 98 | 166 |
700 X 1 500 | 80 | 24 | 180 | 177 |
1 000 X 1 500 | 80 | 45 | 239 | 160 |
1 000 X 2 000 | 80 | 63 | 338 | 174 |
1200 X 2 000 | 80 | 88 | 390 | 166 |
1350 X 2 500 | 80 | 142 | 561 | 170 |
1500 X 3 000 | 80 | 214 | 761 | 174 |
1 700 X 3 000 | 80 | 267 | 840 | 168 |
2 000 X 3 500 | 80 | 430 | 1150 | 168 |
2 500 X 4 000 | 80 | 925 | 1815 | 180 |
2 500 X 5 500 | 80 | 1 317 | 2 653 | 195 |
3 300 X 4 500 | 80 | 1640 | 2 476 | 171 |
3 300 X 6 500 | 80 | 2 532 | 3 961 | 191 |
3 300 X 10 600 | 80 | 4 281 | 6 907 | 208 |
4 500 X 9 000 | 80 | 6 633 | 7 551 | 192 |
4 500 X 12 000 | 80 | 9 037 | 10 490 | 202 |
Pneumatic 50 fender pressure requirements | ||||||
Nominal size diameter x length mm |
Internal pressure | Minimum endurable pressure | Safety-valve pressure setting |
Testing pressure at 0% deflect10n |
||
at 0% deflection kPa |
at 60 % deflection kPa |
at 0% deflection kPa |
at 60 % deflection kPa |
kPa | kPa | |
500 X 1 000 | 50 | 132 | 300 | 462 | - | 200 |
600 X 1 000 | so | 126 | 300 | 441 | - | 200 |
700 X 1 500 | 50 | 135 | 300 | 473 | - | 200 |
1 000 X 1 500 | 50 | 122 | 300 | 427 | - | 200 |
1 000 X 2 000 | so | 132 | 300 | 462 | - | 200 |
1200 X 2 000 | 50 | 126 | 300 | 441 | - | 200 |
1 350 X 2 500 | so | 130 | 300 | 455 | - | 200 |
1500 X 3 000 | so | 132 | 300 | 462 | - | 200 |
1 700 X 3 000 | 50 | 128 | 300 | 448 | - | 200 |
2 000 X 3 500 | 50 | 128 | 300 | 448 | - | 200 |
2 500 X 4 000 | 50 | 137 | 350 | 480 | 175 | 250 |
2 500 X 5 500 | 50 | 148 | 350 | 518 | 175 | 250 |
3 300 X 4 500 | 50 | 130 | 350 | 455 | 175 | 250 |
3 300 X 6 500 | 50 | 146 | 350 | 511 | 175 | 250 |
3 300 X 10 600 | 50 | 158 | 350 | 553 | 175 | 250 |
4 500 X 9 000 | 50 | 146 | 350 | 511 | 175 | 250 |
4 500 X 12 000 | so | 154 | 350 | 539 | 175 | 250 |
Pneumatic 80 fender pressure requirements | ||||||
500 X 1 000 | 80 | 174 | 480 | 609 | - | 250 |
600 X 1 000 | 80 | 166 | 480 | 581 | - | 250 |
700 X 1 500 | 80 | 177 | 480 | 620 | - | 250 |
1 000 X 1 500 | 80 | 160 | 480 | 560 | - | 250 |
1 000 X 2 000 | 80 | 174 | 480 | 609 | - | 250 |
1200 X 2 000 | 80 | 166 | 480 | 581 | - | 250 |
1 350 X 2 500 | 80 | 170 | 480 | 595 | - | 250 |
1500 X 3 000 | 80 | 174 | 480 | 609 | - | 250 |
1 700 X 3 000 | 80 | 168 | 480 | 588 | - | 250 |
2 000 X 3 500 | 80 | 168 | 480 | 588 | - | 250 |
2 500 X 4 000 | 80 | 180 | 560 | 630 | 230 | 300 |
2 500 X 5 500 | 80 | 195 | 560 | 683 | 230 | 300 |
3 300 X 4 500 | 80 | 171 | 560 | 599 | 230 | 300 |
3 300 X 6 500 | 80 | 191 | 560 | 669 | 230 | 300 |
3300 X 10 600 | 80 | 208 | 560 | 728 | 230 | 300 |
4500 X 9 000 | 80 | 192 | 560 | 672 | 230 | 300 |
4500 X 12 000 | 80 | 202 | 560 | 707 | 230 | 300 |



Drawing Of ISO 17357 Net Type Yokohama Floating Pneumatic Marine Rubber Fender
