High Strength Lifting Chain
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Type: | Lifting Chain | Material: | Alloy Steel |
|---|---|---|---|
| Structure: | Flash Butt Welded Chain | Quality Grade: | G80 |
| Color: | Self Color Or As Requested | Safety Factor: | Minimum 4 |
| Surface Treatment: | Polishing,Blackened, Painted, Plastic Coating, Hot-Dipped Galvanized Etc | Usage: | Transmission Chain |
| Highlight: | Alloy Steel Lifting Chain,G80 High Strength Lifting Chain,High Strength Lifting Chain for Transmission |
||
Product Description

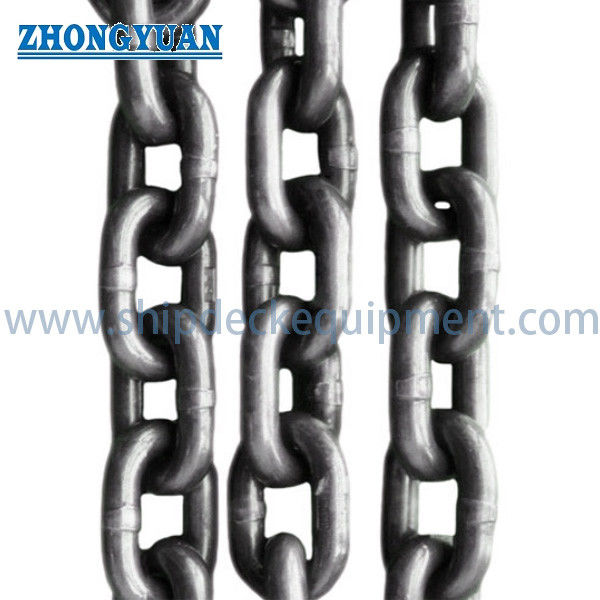

High Strength Lifting Chain
Description:
High strength lifting chain belongs to the type of welded chain, which can be used as transmission chain, drag chain, conveying chain and special chain. It is generally transported through packed in wooden case/iron drum, then in pallets.This chain has passed the environmental management system certification, and can handle the product certification of well-known classification societies such as CCS, LR, DNV, etc. The product has high strength, light weight, exquisite design, strong versatility, diverse functions, and convenient safety inspection.
Main Technical Specifications:
- Type:Lifting Chain
- Material: Alloy Steel
- Structure:Flash Butt Welded Chain
- Quality Grade: G80
- Color: self color or as requested
- Safety Factor: Minimum 4
- Surface Treatment:Polishing,Blackened, Painted, Plastic Coating, Hot-Dipped Galvanized etc
- Usage: Transmission Chain
Main Technical Parameters:
| Chain Type | Size(mm) | Chain Diameter(mm) |
Width(mm) | Weight(kg/m) | Breaking Load Min (KN) |
|
| Inside Min. | Outside Max. | |||||
| Short Link Chain |
7*21 | 7 | 10 | 25.5 | 1.09 | 53 |
| 10*30 | 10 | 14 | 36 | 2.2 | 109 | |
| 13*39 | 13 | 18.1 | 47.1 | 3.8 | 172 | |
| 16*48 | 16 | 22.4 | 57.4 | 5.63 | 281 | |
| 19*57 | 19 | 27.8 | 68.8 | 7.99 | 397 | |
| 20*60 | 20 | 29 | 72 | 8.85 | 440 | |
| Mid Link Chain | 10*40 | 10 | 15 | 37 | 1.97 | 109 |
| 13*52 | 13 | 19.5 | 48.5 | 3.36 | 172 | |
| 14*50 | 14 | 18.5 | 49.5 | 4.00 | 215 | |
| 16*64 | 16 | 24 | 59 | 5.06 | 281 | |
| 19*76 | 19 | 28.5 | 69.5 | 7.15 | 397 | |
| 22*86 | 22 | 27 | 74 | 9.45 | 532 | |
| 26*92 | 26 | 31 | 86 | 13.63 | 743 | |
| Long Link Chain | 7*45 | 7 | 10 | 25.5 | 0.83 | 53 |
| 9*53 | 9.0o | 15 | 35 | 1.45 | 89 | |
| 11*63 | 11 | 18 | 43 | 2.16 | 132 | |
| 13*80 | 13 | 22 | 51 | 2.93 | 172 | |
| 16*100 | 16 | 26 | 61 | 4.42 | 281 | |
| 19*100 | 19 | 27 | 68 | 6.45 | 397 | |
| 22*120 | 22 | 37 | 84 | 8.74 | 532 | |
| 28*150 | 28 | 44 | 103 | 14.3 | 860 | |
